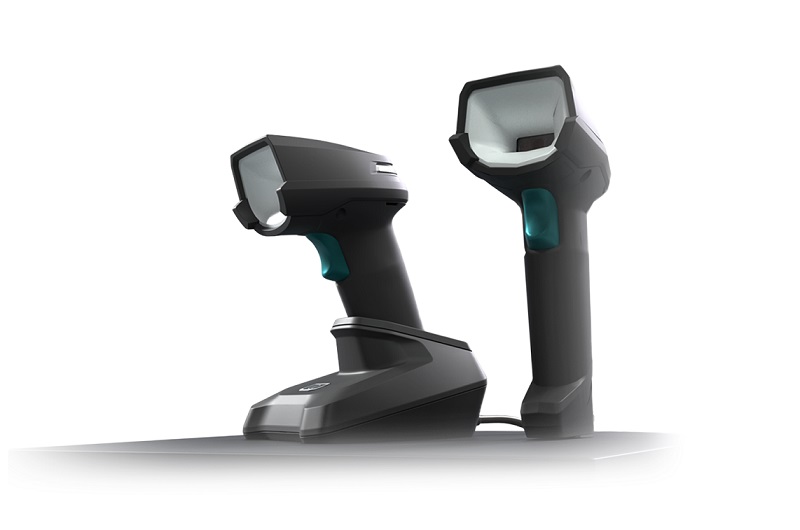

Appearance
HT20 wireless & wired AI barcode scanner
High-performance decoding algorithm com-bined with Al recognition capability handles diverse and complex requirements.
Massive training data improves recognition rates for damaged, curved, abnormal bar-codes,etc.
Utilizes white electric light source + red and blue surface light sources to handle complex situations like insufficient brightness and surface glare, improving scanning capture rate.
Features

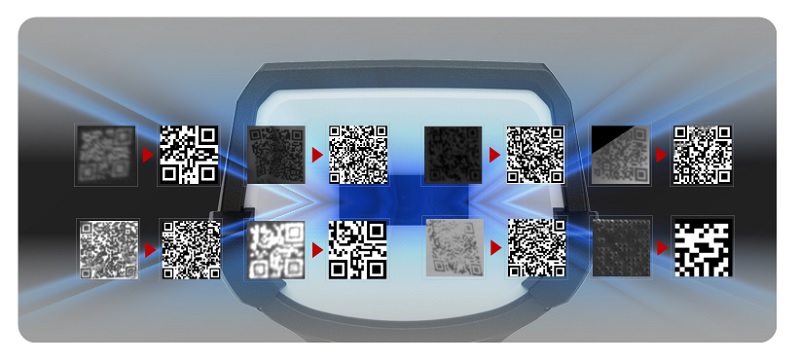

New generation AI decoding algorithm, capable of decoding difficult to read barcodes in milliseconds
Equipped with a powerful quad-core decoding chip and AI decoding algorithm, the device has stronger decoding ability and faster decoding speed.
Whether it is high-density barcode or blurry DPM code, it can be decoded in milliseconds, reducing the feeling of stuttering in on-site operations and making the operation smoother.

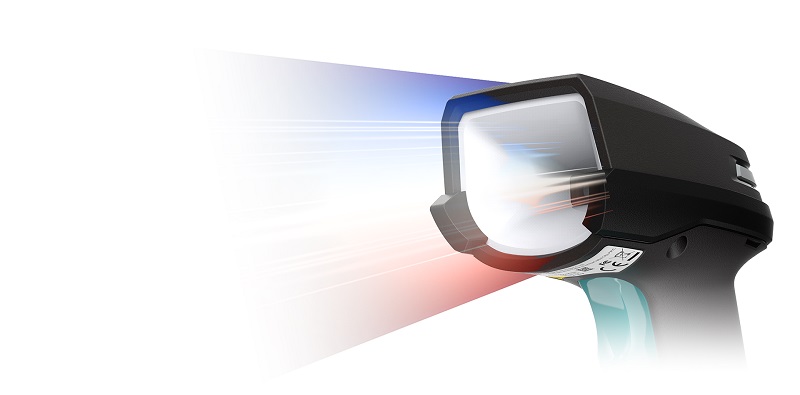

3-color light and surface light source illumination are more suitable for complex work sites
Using white point light source and red +blue surface light source for illumination, whether in low light, bright light environment, or barcode surface reflection or blurring,
it can clearly illuminate and almost meet the lighting needs of complex environments such as electronic factories and automotive assembly workshops.
Combined with strong decoding ability, the equipment can better adapt to complex work sites.
Powerful protection and detachable battery enable devices to have a longer lifespan
Having strong drop and IP protection, the equipment can effectively cope with harsh environments such as drops, collisions, water splashes, dust, etc.,
effectively avoiding equipment damage caused by accidents. The wireless version adopts a detachable battery design,
which can be replaced with a new backup battery to continue using if battery ages, greatly extending the product's lifespan.
Performance parameter
Image sensor | 1280 * 800 pixels, global exposure |
Light source | White point light source+ red & blue surface light source |
Aiming | laser |
Physical parameters
Size (H * W * D) | 180.3mm*87.3mm*69.3mm |
Weight | Wired: 139.5g Wireless: 257.0g |
Working voltage | Wired: 5V ± 0.5V Wireless: 3.5~4.2V |
Current value | Wired: 190mA (typical value), 460mA (maximum value) Wireless: 222mA (typical), 575mA (maximum) |
Interface | USB-HID ，USB-CDC ，RS232 |
Notification | Speaker+LED+vibration motor |
Housing material | PC+GF+ABS |
Code recognition system
1D | Codabar ，Code 11 ，Code 128 ，Code 32 ，Code 39， Code 93 ，EAN 13 ，EAN 8 ，UPC-A ，UPC-E ，IATA 2 of 5， Interleaved 2 of 5 ，Matrix 2 of 5 ，Straight 2 of 5， MSI/PIessey ，GS1 DataBar， etc |
2D | Aztec ，Data Matrix ，Micro PDF 417 ，PDF 417 ，QR， Micro QR ，Grid Matrix etc |
Decoding range
Barcode | XD (ultra-high density) | HD (High Density) | SR (Standard Distance) |
3.33mil Code128 | 0cm~2cm | 2.5cm~9.5cm | 9.0cm~15cm |
10.83mil Code128 | 0cm~4.5cm | 0cm~16.5cm | 2.0cm~41.0cm |
5.83mil QR Code | 0cm~2.5cm | 2.5cm~8.0cm | / |
20.83mil QR Code | 0.5cm~6.0cm | 0.5cm~19cm | 0.5cm~51cm |
Scanning performance
Reading accuracy | ≥3.33mil |
Scanning angle | Pitch: ± 72.5 °; Skew: ± 60 °; Tilt: 360 ° |
Field of view angle | Horizontal: 44.3 °, Vertical: 28.4 °, Diagonal: 51 ° |
Motion tolerance | 13mil UPC 2m/s (supports a maximum of 8m/s in high motion fault-tolerant mode) |
Minimum Reading Contrast | 6% |
Environmental parameters
Working temperature | 0℃~50℃ |
Storage temperature | -20℃~70℃ |
Humidity | 5% to 95% (no condensation) |
Ingress Protection | IP67 |
Drop specification | Multiple drops to cement floor at 2 meters height |
Ambient light | 0Lux~100000Lux |
Static protection | ± 15KV (air discharge), ± 8KV (contact discharge) |
Wireless transmission performance BT (wireless version only)
Bluetooth | Bluetooth 5.0 |
Frequency band | 2402MHz~2480MHz |
Transmission distance | up to 70m in an open space |
Communication mode | Base HID/Base CDC/Base RS232 |
Scan configuration (wireless version only)
Battery capacity | 3200mAh, detachable |
Charging time | 3 Hours (5V/2A) |
Working hours | ≥12h |
Number of scans | Each charge can suport over 100000 times |
Accessories
Standard Accessories | Wired: data cable*1, user manual*1 Wireless: base * 1, adapter * 1 data cable * 1, user manual * 1 |
Optional Accessories | Serial port cable, cradle |
Application
With high performance, HT20 AI scanner is widely used in Retail, Logistics, Healthcare, Manufacturing etc. industry scenarios.
