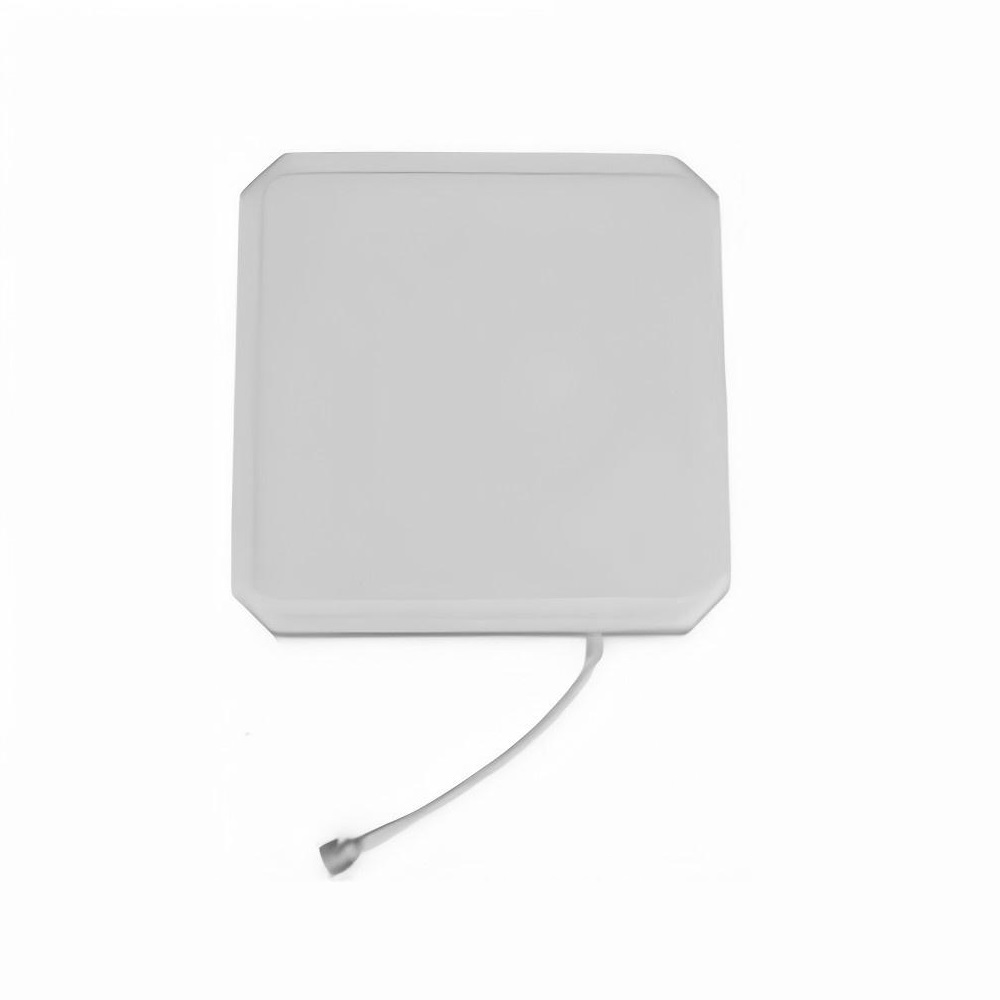

UHF RFID Antenna
This is a 9dBi circular polarization UHF RFID antenna.
Contact Us
Hotline
+86-18710380696

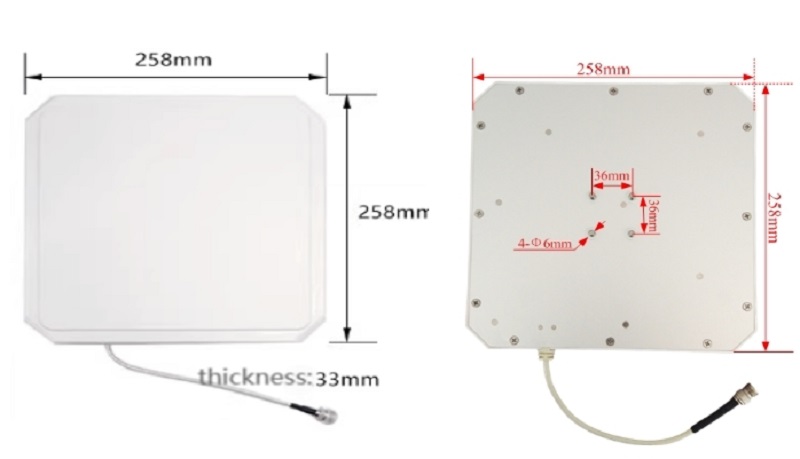

Appearance, Installation Dimension & Diagram:
Features:
Circular polarization antenna with 9dBi gain
Connector: SMA/N/TNC
A rugged design with IP67 sealing level

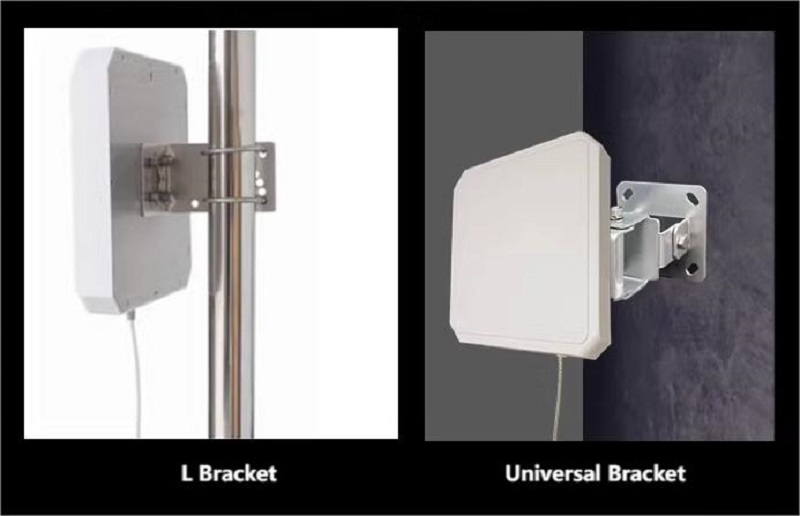

L bracket and universal bracket suitable for different scenarios
Model | TN26&TS26 |
RFID Performance | |
Dimension | 275*185*26mm |
Weight | 790g |
Antenna housing | Polycarbonate (PC) |
Frequency | ISM 902~928MHz |
Gain | 9dBi |
Bandwidth | 26MHz |

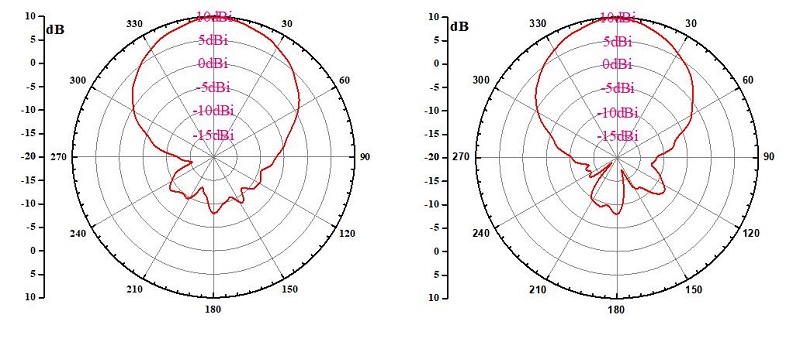

Half-Power Beam Width | 70° |
Voltage Standing Wave Ratio | ≤1.3 |
Maximum power | 100W |
Impedance | 50Ω |
Polarization mode | Circular polarization |
Connector | SMA/N |
Working temperature | -45℃ ~ +85℃ |
Storage temperature | -45℃ ~ +85℃ |
Sealing level | IP67 |
Lightning protection | Direct ground |
Maximum wind resistance | 60 m/s |
Installation method | L bracket/universal bracket |
